WaterWeights 35 Tonne Proof Load Test Bag – Rental
SKU: WW-RENTAL-35T

WaterWeights 35 Tonne Proof Load Test Bag – Rental

$0.00Price
Quantity

The 35 tonne WaterWeights standard raindrop-shaped bag handles high-capacity proof load tests on overhead and gantry cranes, mobile cranes, davits and load-bearing structures. Up to three bags can hang from a single point, or bags can be combined with a spreader beam for larger tests.


WaterWeights water-filled proof load test bags are a safer, more flexible alternative to solid test weights. The load is raised gradually and under control, so any problem shows up before the full test load is reached. An empty bag weighs only a small fraction of its test load, so it ships, handles and stores easily, and it is filled with water on site.


Specifications (Type BS 35S – Standard):

- Safe working load (test capacity): 35 t

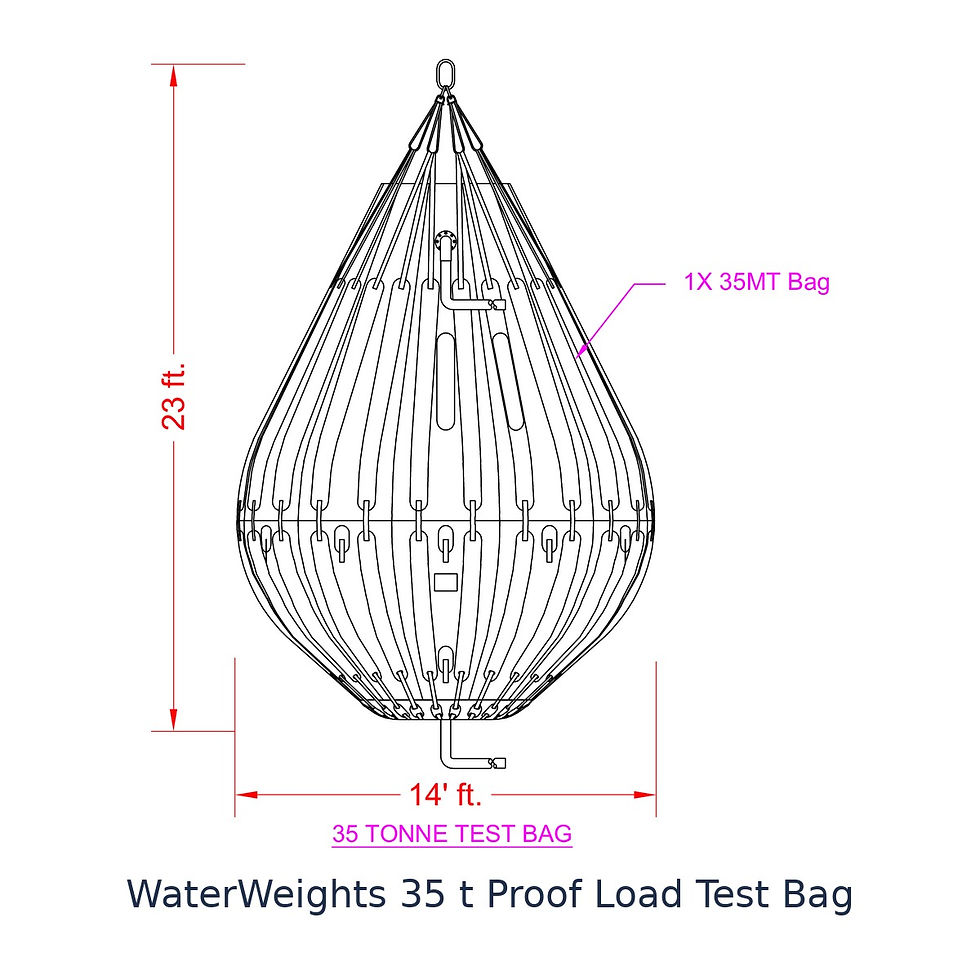

- Filled height (overall, to lifting point): approx. 23 ft (7.01 m)

- Filled maximum diameter: approx. 14 ft (4.27 m)

- Packed size (L x W x H): 1.20 x 1.50 x 1.00 m (approx. 3.9 x 4.9 x 3.3 ft)

- Packed weight: 410 kg (approx. 904 lb)

- Net (empty bag) weight: 340 kg (approx. 750 lb)

- Empty height: 7.60 m (approx. 24.9 ft)

- Filling connection: 2.5" Storz

- Use: Up to three bags can hang from one lifting point. Special rigging is needed for more than three.


Specifications shared by all our WaterWeights bags:

- Safety factor: 6:1, NEL certified

- Proof tested: every bag is physically proof tested at 2:1

- Skin material: PVC-coated polyester fibre canvas

- Maximum wind speed in use: 25 knots

- When a bag is filled below full capacity, its diameter gets smaller and its length increases.


Rent the bag on its own for your own qualified crew, or book SafeLift Crane Aid to carry out the complete load test and certification. Tell us the rated capacity of your equipment, the test load you need, the available headroom, your site location and your dates, and we will recommend the right bags and confirm availability, rates and shipping.


Optional rental add-ons: calibrated flow meters or load cells, and water pumps, are also available for rent. Contact us for rental rates.


In stock in Langham, ready to ship across Canada. Rental only – contact us for rates and availability: +1 (306) 374-5476 | sales@ventercranes.com


Filled height and diameter are taken from the general arrangement drawings of our own rental bags; other specifications are from WaterWeights published data. All dimensions are approximate. Ask us for the specifications of the bag you are renting.
